Foshan Fuyao BBQ Motor Factory is one of the most reliable manufacturers and suppliers of bbq pit heavy duty rotisserie motor in China. If you're interested in our bbq pit heavy duty rotisserie motor, please rest assured to buy. The wholesale orders and customized orders are also welcome in our factory. We'll offer you reasonable price and the best service.
ITEM NO.：FD609B BBQ Pit Heavy Duty Rotisserie Motor (12V)

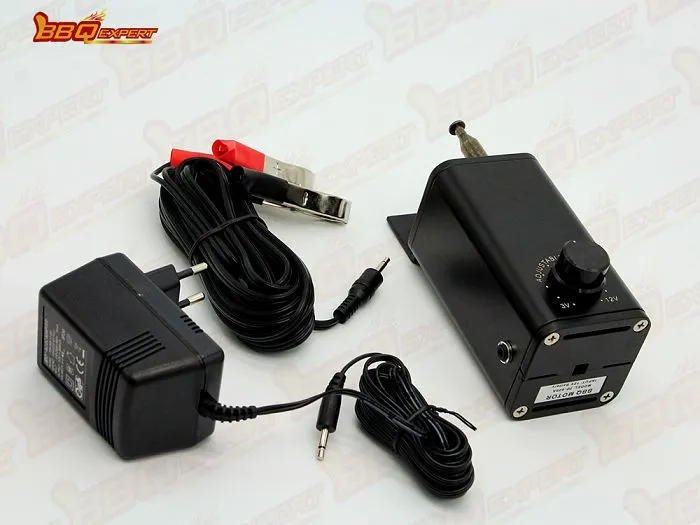

BBQEXPERT BBQ Pit Heavy Duty Rotisserie Motor Variable Speed 12V DC Motor FD609B
Specialty:The most professional BBQ Pit Heavy Duty Rotisserie Motor manufacturer. It's our patented design great motor.This electric motor for spit roast include one 12V adapter and one alligator clip line. The most important function is a kind of variable speed 12v dc motor. The difference between FD609A and FD609B is the rotisserie speed and related output torque.It's existed according to different customer's requirement. High thermal insulation,low noise,power-saving and long life.
Products Description and Packing Details:
|
Speed |
3V |
4.5V |
6V |
7.5V |
9V |
12V |
|
Output torque |
8kg |
14kg |
18kg |
24kg |
26kg |
28kg |
|
Item No. |
FD609B(12V) |
|||||
|
Clip Line Length |
5M |
|||||
|
Adapter Line Length |
2.8M |
|||||
|
Adjustable Speed |
DC3~12V(13R/M~56R/M) |
|||||
|
Material&Color |
Aluminum/Black |
|||||
|
Rated Voltage |
12V |
|||||
|
Power |
15W |
|||||
|
No-load Current |
0.41A Max |
|||||
|
Load Current |
1.85A Max |
|||||
|
Start Power |
DC2.0V |
|||||
|
Adapter Volts Hertz |
50Hz |
|||||
|
Adapter Pole No.: |
12 |
|||||
|
Adapter Insulation Grade |
A |
|||||
|
Motor Insulation Resistance |
10MΩ min at 500V DC |
|||||
|
Using environment |
Temperature:15-30°,Humidity: 30%-70% |
|||||
|
Direction |
CW |
|||||
|
Product Size |
60X60X135MM |
|||||
|
Certificate |
CE, ROHS |
|||||
|
Mouth size |
6.5X6.5MM |
|||||
|
Individual Packing |
Plain White Box 17X7X14CM(for 1 PC) |
|||||
|
Master Carton Box |
Five Layers B=C Cardboard |
|||||
|
Qty/Ctn |
18PCS |
|||||
|
NW/Ctn |
18KGS(1kgs/pc) |
|||||
|
GW/Ctn |
20KGS |
|||||
|
CTN Size |
63X33X14CM |
|||||
|
Product NW |
Motor:0.59KG Adapter:.0.33KG |
|||||
